Reanimated
'15-Present

Software IDE

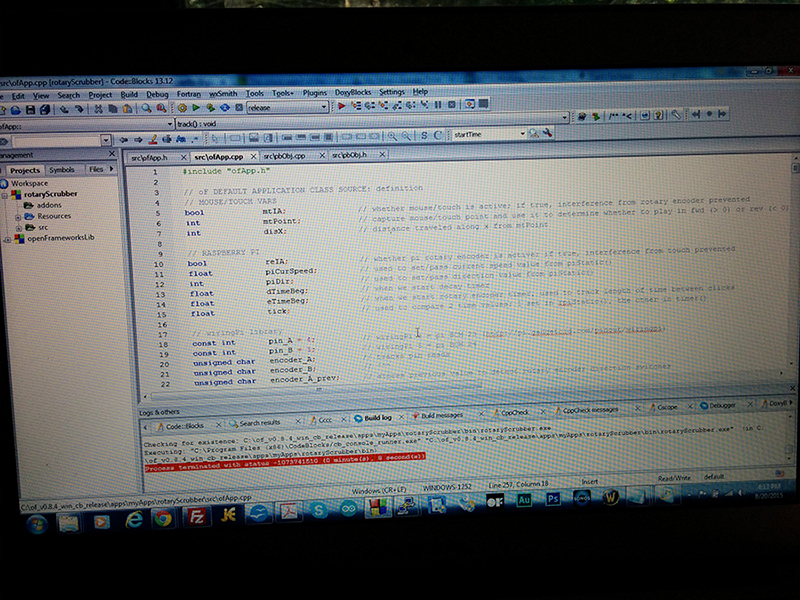

• C++, CodeBlocks, openFrameworks

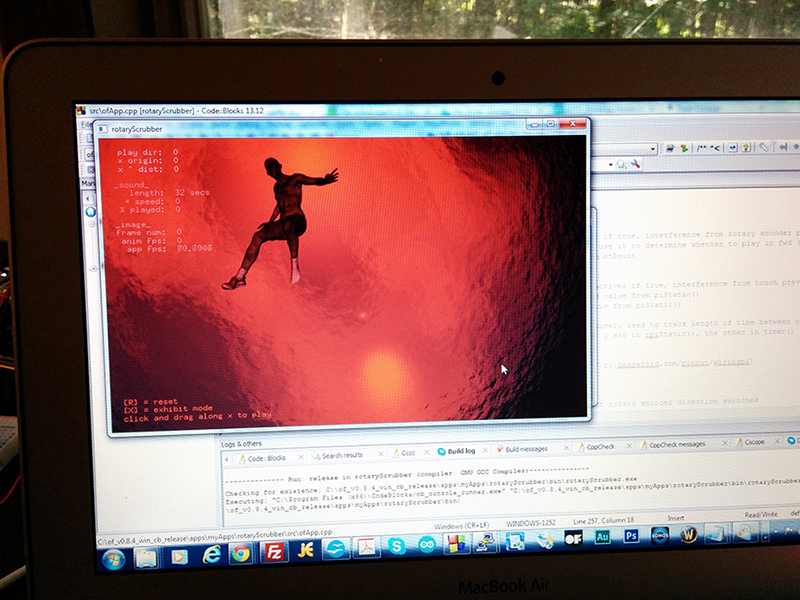

Software Sim

• Compiled openFrameworks app running on PC
• Using mouse control instead of touch
• Debug overlay for testing sound and animation playback

Music Box

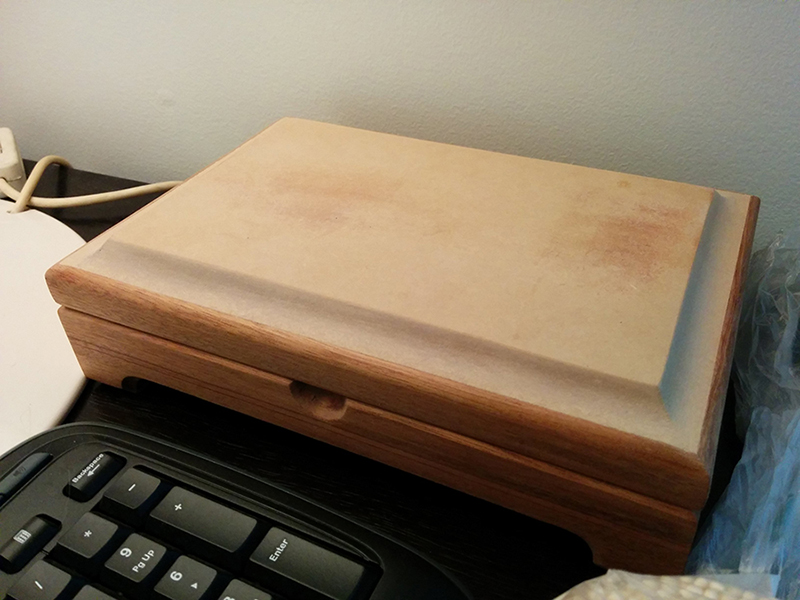

• Modified thriftstore cigar container
• Sanded down, prior to top removal and laser-cut hole for HDMI touchscreen

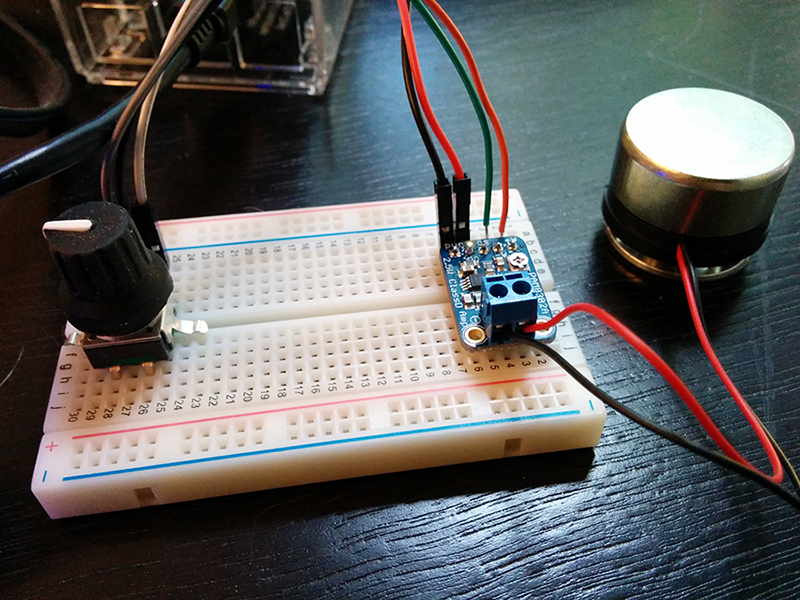

Breadboard

• Rotary dial to control playback of sound and animation
• Sound and animation can be played forward or backward, and sped up or slowed down
• Sound is output through a 4 Ohm 3W medium surface transducer with 2.5W class D audio amplifier

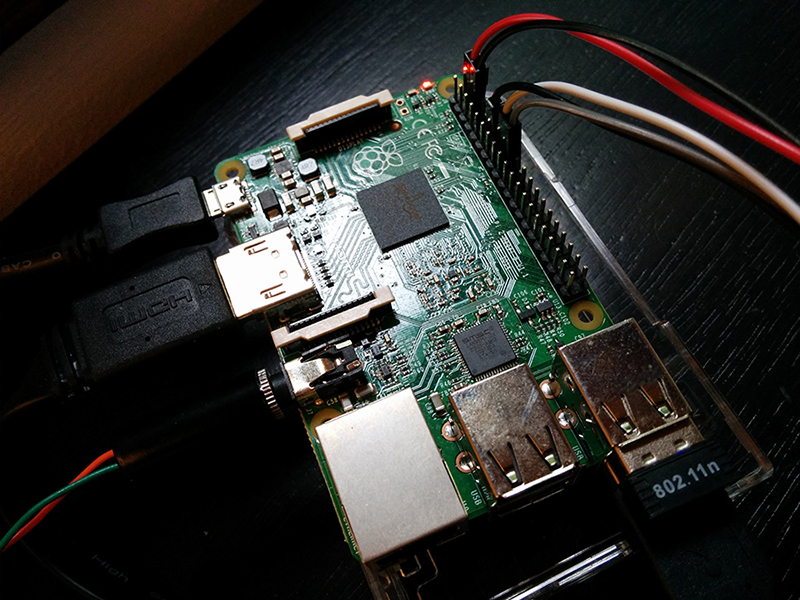

Pi

• Raspberry Pi 2 Model B ARMv7 with 1GB RAM
• Raspbian running openFrameworks and WiringPi
• USB WiFi for remote access
• USB for lithium battery power pack
• Plugs for power, HDMI screen, and sound out

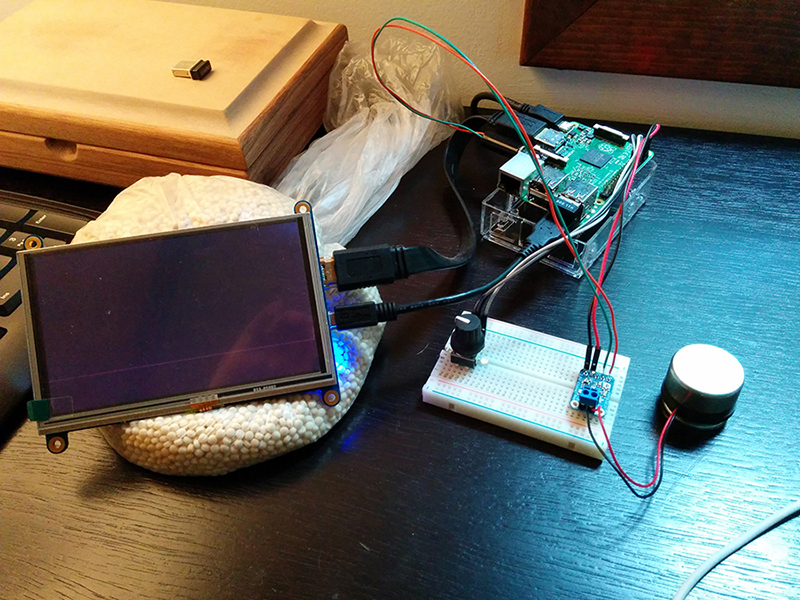

Components

• Wired up for testing
• HDMI 5" 800x480 touch display with backpack
• Rotary controller (unused once touch is active)
• Transducer and audio amplifier

Touch Test

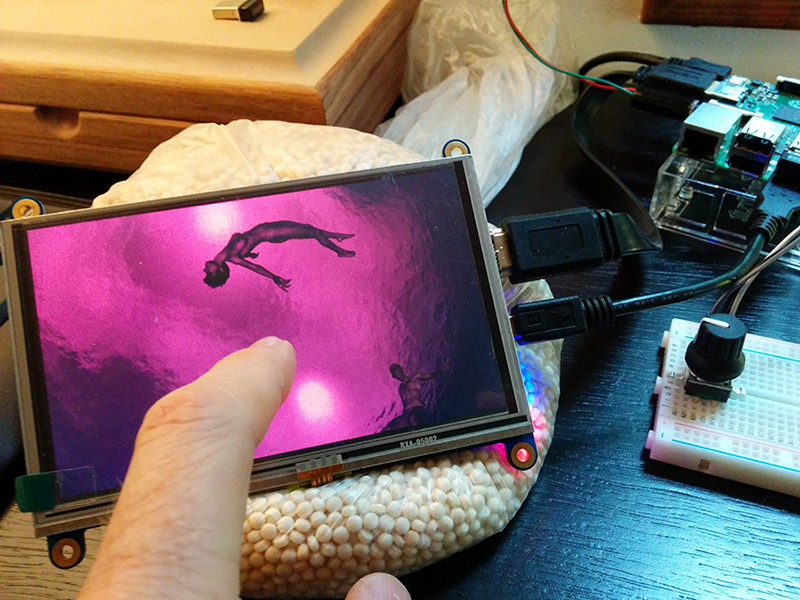

• Testing the animation and sound controls via HDMI touchscreen
• Sliding finger left/right plays sound and animation backward/forward
• The further from the initial touch point, the faster the playback; similar to scrubbing an LP from 0-72+ rpm
• The "sweet-spot" must be found for the sound and animation play back at the recorded 32 RPM/24 FPS

Video Demo

• May skip and stutter a bit if slow to stream
• Forgive the poor sound quality (shot from mobile phone)
• The scan lines you see on the HDMI are an intentionally programmed video noise effect

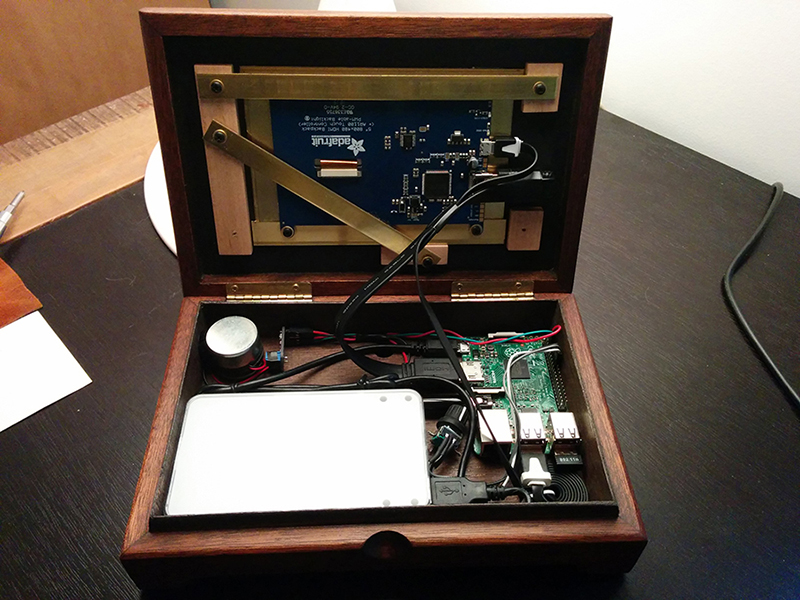

Test Fitting

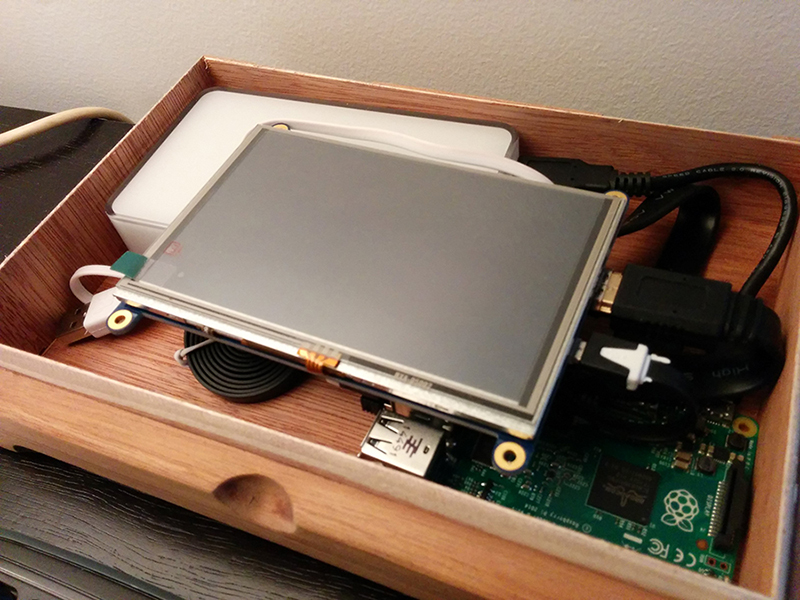

• Arranging the components inside the box
• Under the HDMI is a 10000mAh 2x5V 2A USB battery pack
• Noodle cables are used to reduce space

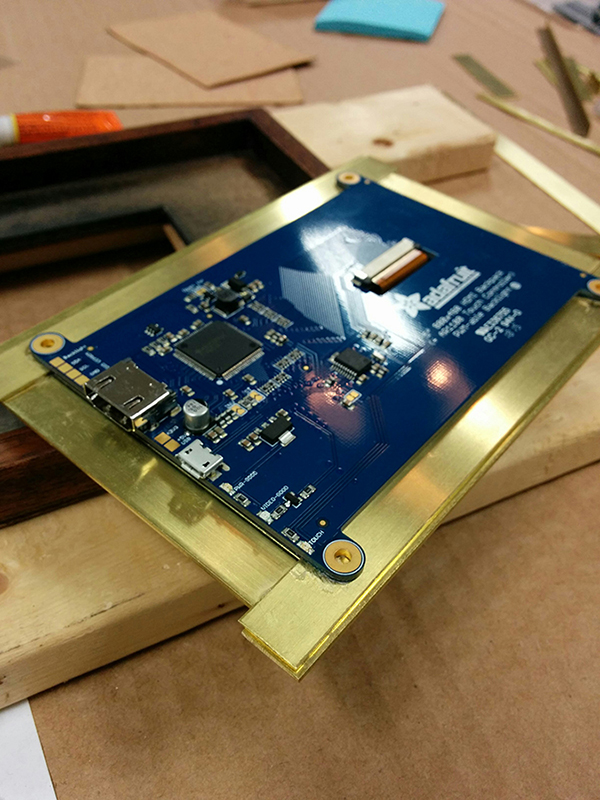

HDMI Brass Trim, Bottom Detail

• Underside of HDMI screen being fitted into brass frame
• Laser cut box lid is beneath HDMI

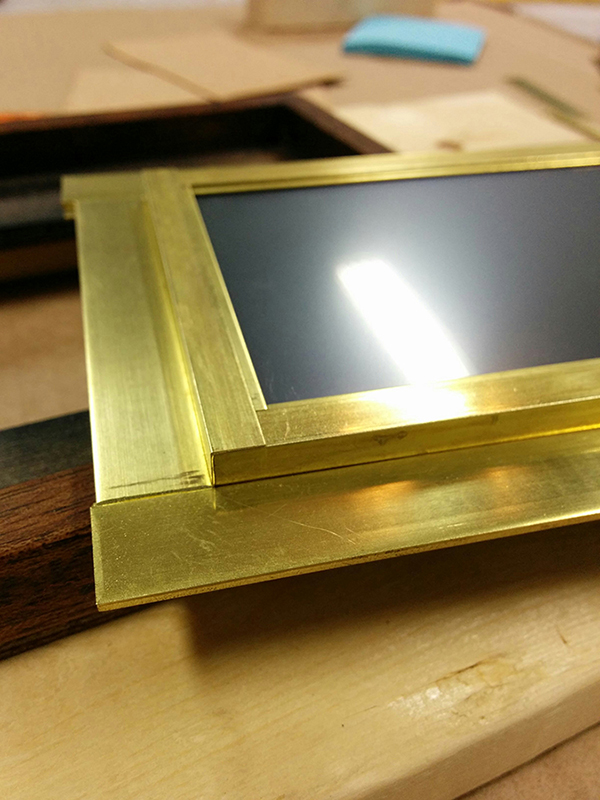

HDMI Brass Trim, Top Detail

• Hand cut brass angle and flat stock
• Widths ranging from 1/4" - 1"
• Super glued

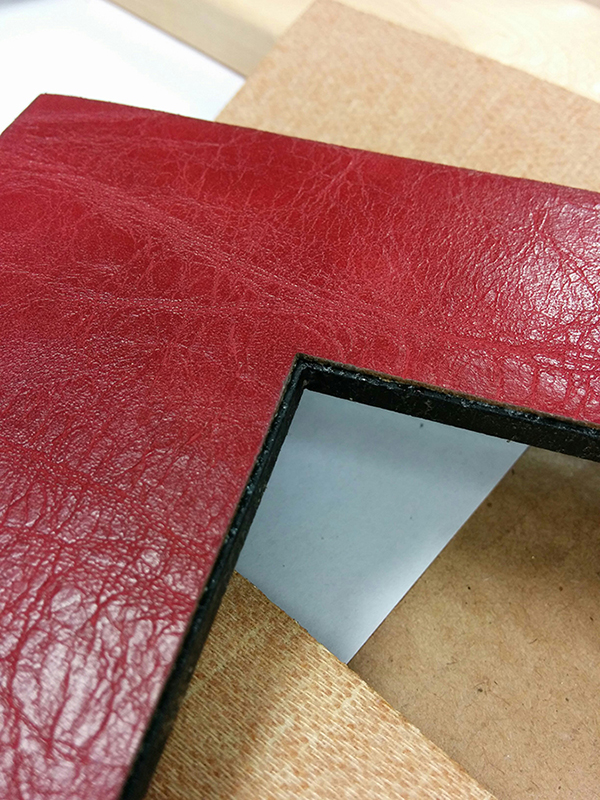

Leather Detail

• Leather for surface of box top
• Laser cut using a BOSS LS-1416 50W machine

Finished Inside

• All hooked up
• Can be run off battery, or plugged in
• On/Off power button and shutdown switches are accessible from underneath (not visible in pic)

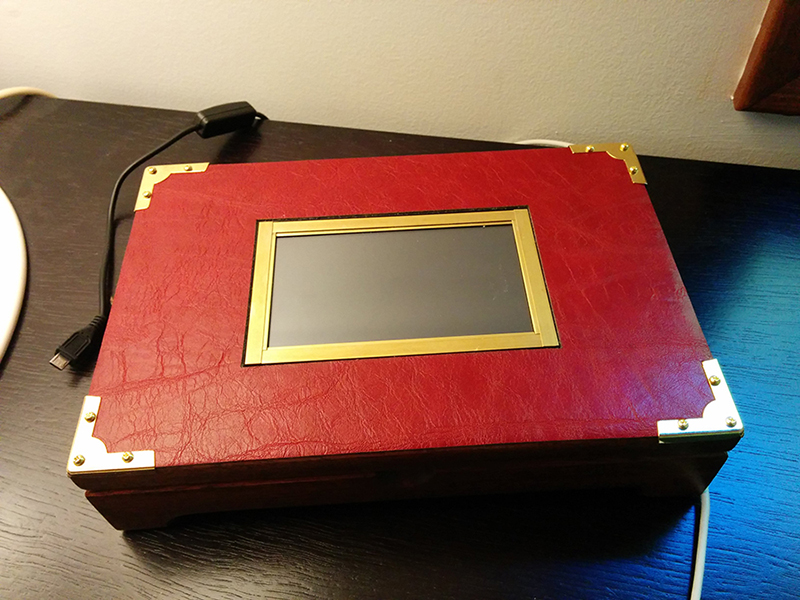

Finished Outside

• Inactive until touched, at which point screen fades in and animation/sound begin playing
• Disconnected micro USB toggle switch in background
• White cable along right side is laptop power cord (not used by box)
